Watsond ZLP 250 suspended platform is a main product of ZLP series suspended platforms. It is made according to China’s GB 19155-2003 standard for suspended platforms working at height. It is easy to assemble and disassemble, tailed to suit any working conditions. It can help you with both construction and maintenance work.
Model: ZLP 250
Brand: Watsond
Material: steel or aluminum
Rated load: 250 kg
Working height: 0-100 m
Power supply: 380V50HZ 3phase
Hoist : LTD50
Safety lock: LSB30
Compostion of ZLP 250 suspended platform

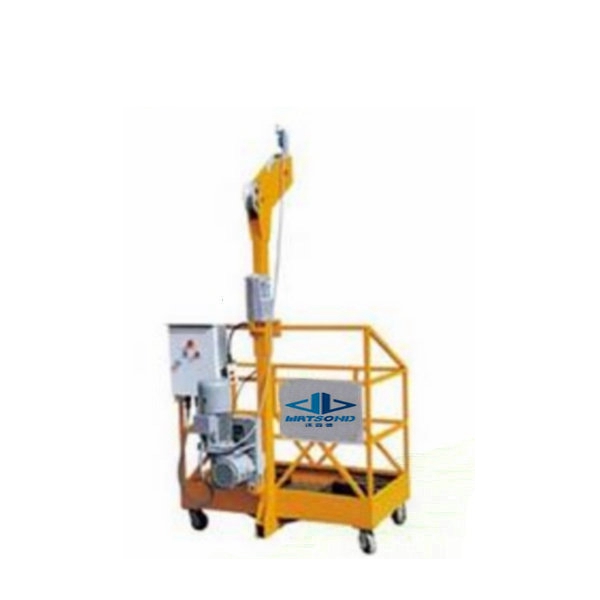

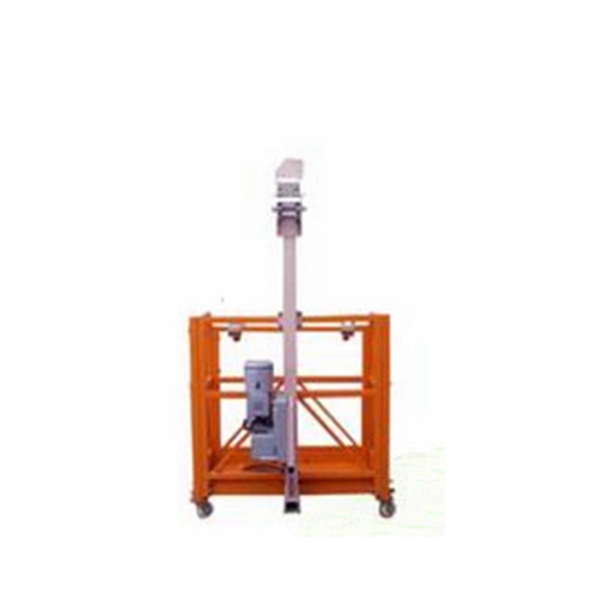

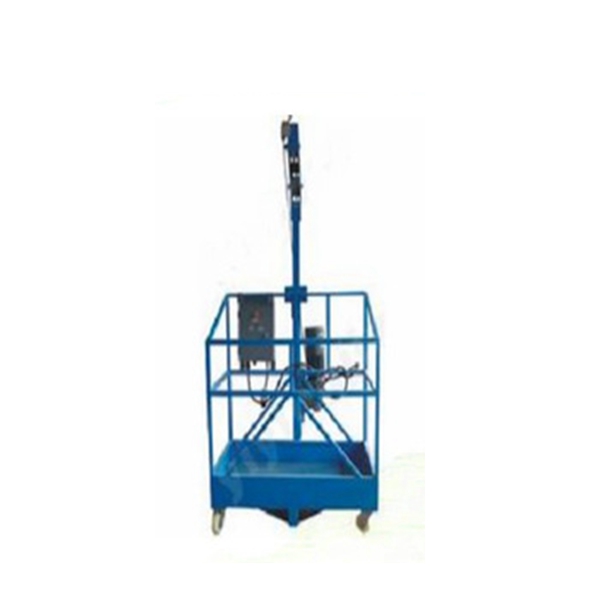

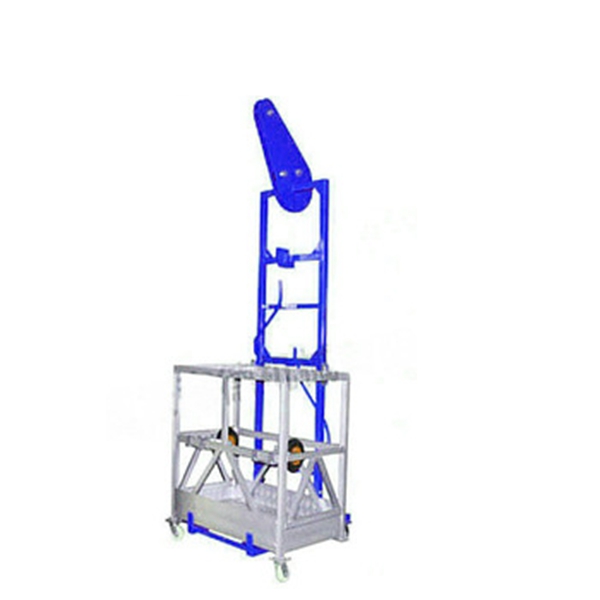

A ZLP 250 suspended platform is a single person platform composed by a suspended platform and its components such as the electric control box, hoist and safety lock.
Parameters of ZLP 250 suspended platform
Model: ZLP250
Rated load: 250 kg
Working height: 0-100 m
Power supply : 380V50HZ 3phase5wires
Lifting speed : 9 m / min
Lifting power: 1.1kw * 2
Platform size: 1.2 * 0.68*2.3 m
Platform weight: 150kg ( aluminum ) or 220 kg ( steel ）
Suspended mechanism weight: 160 kg
Wire rope : 31SW+FC-8.3
Hoist: LTD50
Safety lock: LSB30
Counter weight: 350 kg
Operation of Watsond ZLP250 suspended platform
Watsond ZLP250 suspended platform is a powered platfrom which is controled by an electric control box and lifted by a LTD50 hoist. The box is fixed on the inside of the platform thus it can be easily operated by the worker. There are cables which connect it to the power source ( usually on the roof of the building) and to the hoist. Once the power is on , the hoist will drive the platform up and down.
The LTD50 hoist is fixed to the platform, which is 50 kg and has a power of 1.1 kw.It adopts α type rope in-and-out system, and is designed for 31SW+FC-8.3 wire ropes.
